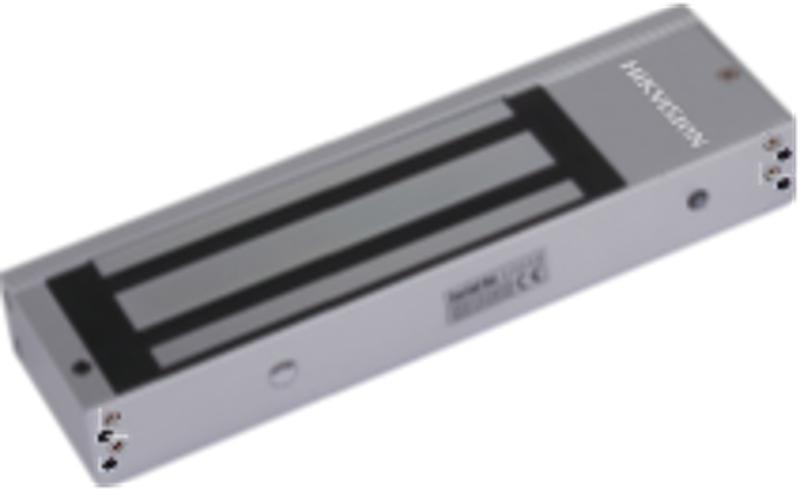

DS-K4H450

Pro Series Magnetic Lock

Magnetic lock supports static linear thrust of 500kg (1102.5 lbs)

Power supply can be 12 VDC or 24 VDC + 10% (default voltage is 12 VDC)

Suitable for wooden door, glass door and metal door

LED indicator displays door lock status

Signal output of door lock status

specification

General
IndicatorLED Indicator: Green (Locked),Red (Unlocked)
Power supply
12/24 VDC + 10%

12 VDC, 420 mA

24 VDC, 210 mA
Dimensions
Dimension of Lock Body (L × W × H): 265 mm × 71.8 mm × 38.8 mm (10.43” × 2.83” × 1.53”)

Dimension of Armature Plate (L × W × H): 185 mm × 60 mm × 13 mm (7.28” × 2.36” × 0.51”)
Weight4.5 kg (9.92 lbs)
Signal outputDry Contact Signal Output; Support Maximum Power Rate of 3 A, NO Output While Locking and NC Output While Unlocking

Magnetic Lock/General
Maximum holding force500kg (1102.5 lbs)
Suitable doorWooden Door, Glass Door, Metal Door
