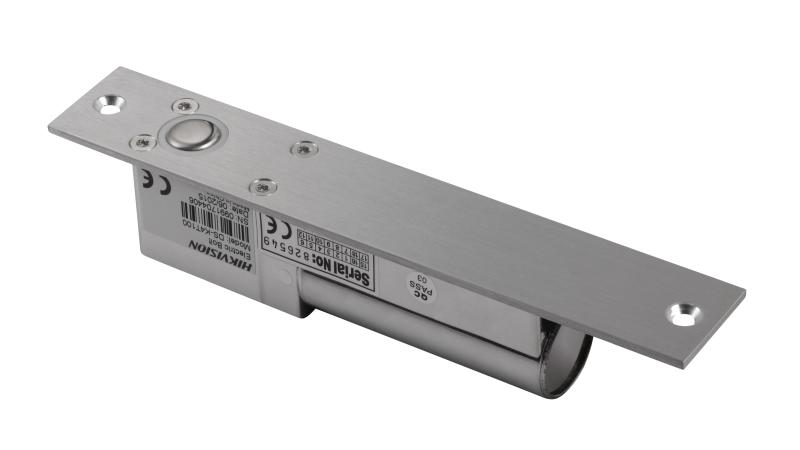

DS-K4T100

Pro Series Bolt Electric Lock

Electric bolt, polished and brushed stainless steel, upport thrust of 800kg

Working current: 900mA(Startup current), 100mA (standby), 12VDC + 10%

Capable of 500,000 locking operations

Suitable for wooden door, glass door, metal door and fireproof door

Signal output of door lock status.

specification

General
Power supply12 VDC+10 %, 900 mA (startup current), 100 mA (standby)
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity0 to 95 % (relative humidity)
Dimensions
Lock Body (L × W × H): 205×35×40mm (8.07 × 1.38 × 1.57″)

Armature Plate (L×W×H): 90 × 25 × 2 mm (3.54 × 0.98 × 0.07)

Bolt: 16 mm × 16 mm (0.63 × 0.63)”
MaterialBolt: polished and brushed stainless steel
Thrust800 kg
Door typeWooden door, glass door, metal door, fireproof door
Signal outputSignal output NC, COM contact of door status
Magnetic induction distance8 mm (0.31″)
Delay duration0/3/6/9 s Optional
