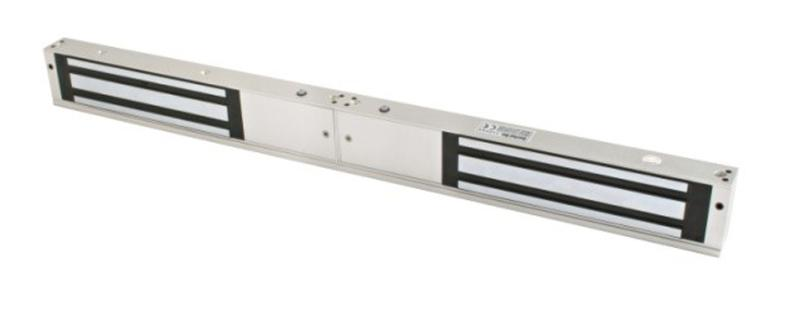

DS-K4H250D

Pro Series Magnetic Lock

The magnetic lock supports static linear thrust of 272 kg (599.8 lbs) × 2

Power supply can be customized to be 12 VDC or 24 VDC, (default voltage is 12 VDC)

Equipped with internal voltage dependent resistor (MOV)

LED indicator displays door lock status

Abrasion-proof materials

specification

General
IndicatorRed (Door is Unlocked) Green (Door is Locked)
Power supply
12 VDC/500 mA

24 VDC/250 mA
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity0 to 95% (Relative Humidity)
Dimensions
Lock body: 480 mm × 49 mm × 25.5 mm (18.90″ × 1.93″ × 1.00″)

Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5″ × 0.4″ )”
Weight4.2 kg (9.3 Lbs)
Material
Shell: hard Anodizing Electroplating Operated

Lock Body: eco-friendly Zinc with Electroplating Operated

Armature Plate: eco-friendly Zinc with Electroplating Operated
ThrustMax. 272 kg (599.8 lbs) × 2 linear thrust
Door typeSingle leaf,Double leaf, Wooden Door, Glass Door, Metal Door, Fireproof Door
Signal outputDry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
