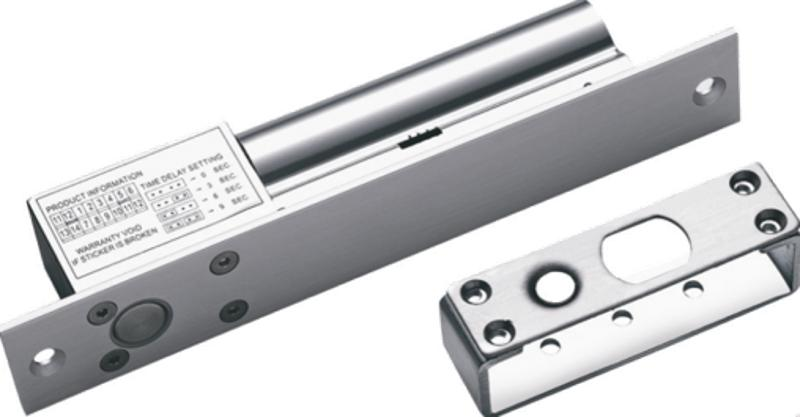

DS-K4T108

Value Series Bolt Electric Lock

Electric Bolt, 205×34×42mm (8.1×1.3×1.7″), 12VDC, ≤1.2A (Startup Current), 0.2A (Standby)

Auto-locking if induction module is detected

Suitable for wooden door, glass door, metal door

Equipped with internal voltage dependent resistor (MOV)

Signal output of door lock status (NONCCOM)

Abrasion-proof materials

Shell is made of aldural and is hard anodizing electroplated.

specification

General
Power supply12VDC; ≤1.2A (Startup Current) 0.2A (Standby)
Working temperature-10°C~+55°C (14°F~131°F)
Working humidity0~95% (Relative Humidity)
DimensionsDimension of Lock Body (L×W×H): 205×34×42mm (8.1×1.3×1.7″)
Weight0.74kg
MaterialShell: Hard Anodizing Electroplating Operated
Signal outputDry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;
Delay duration0/3/6/9s Optional

Magnetic Lock/General
Unlock methodCurrent Interruption
Surface temperature≤ Ambient Temperature +10°C (50°F)
Suitable doorWooden Door, Glass Door, and Metal Door
