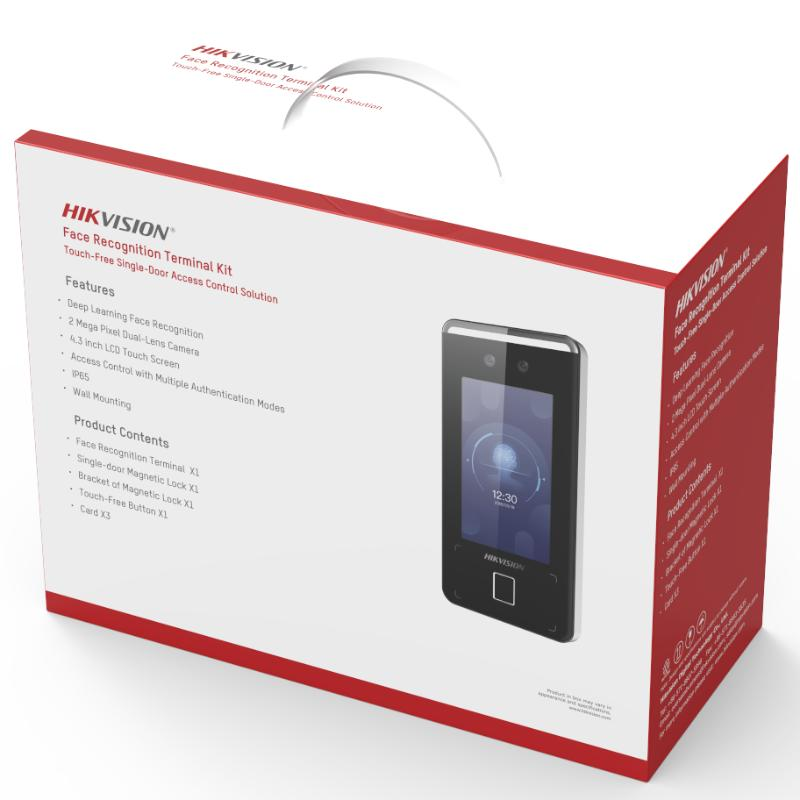

DS-KAS541

Face Recognition Terminal Kit

Touch-free single-door access control solution

Deep learning face recognition

2 mega pixel dual-lens camera

4.3-inch LCD touch screen

Access control with multiple authentication modes

IP65

specification

Face Recognition Terminal/System parameters
ModelDS-K1T341CMF
Operating systemLinux

Face Recognition Terminal/Display parameters
Screen size4.3-inch
Operation methodCapacitive touch screen
TypeLCD
Resolution480 × 800

Face Recognition Terminal/Video parameters
Lens× 2
Resolution2 MP

Face Recognition Terminal/Network
Wired network10 M/100 M/1000 M self-adaptive

Face Recognition Terminal/Interface
Network interface1
Lock control1
Exit button1
Door contact input1
TAMPER1
RS-4851
Wiegand1
USB1

Face Recognition Terminal/Capacity
Face capacity1,500
Fingerprint capacity1,500
Card capacity1,500
Event capacity150,000

Face Recognition Terminal/Authentication
Face recognition distance0.3 to 1.5 m
Face recognition accuracy rate＞99%
Face recognition duration＜ 0.2 s
Fingerprint recognition duration＜ 1 s
Card typeM1 card
Card reading frequency13.56MHz
Card reading distance0 to 3 cm
Card reading duration＜ 1 s

Face Recognition Terminal/Function
QR code recognitionSupport
Face anti-spoofingSupport
Audio promptSupport
Time synchronizationSupport

Face Recognition Terminal/General
ButtonTouch screen
Power supply12 VDC, 2 A.
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity0 to 90% (No condensing)
Protective levelIP65
Dimensions172.5 mm × 83.2 mm × 22.7 mm (6.79″ × 3.27″ × 0.89″)
InstallationSurface mounting

Magnetic Lock/General
ModelDS-K4H258S
Unlock methodCurrent interruption
Maximum holding force280 kg (617.4 Lbs) linear thrust
Power supply12 VDC, 340 mA
IndicatorGreen (work status)
Surface temperature≤ ambient temperature 20 °C (68 °F)
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity0 to 95% (relative humidity)
Dimensions
Lock body: 238 mm × 45 mm × 25 mm (9.4″ × 1.8″ × 1.0″)

Armature plate: 182 mm × 38 mm × 12.5 mm (7.2 × 1.5″ × 0.5″)”
Weight2.1 kg (4.6 Lbs)
Suitable doorWooden door, glass door, metal door, fireproof door
Shell performanceHard anodizing electroplating operated
Lock bodyEco-friendly Nickel electroplating operated
Armature plateEco-friendly Nickel electroplating operated

Bracket of Magnetic Lock/General
Dimensions
L-bracket: 238 mm ×30 mm × 47 mm (9.4″ × 1.2″ × 1.9″)

Z-bracket: 185 mm ×44mm × 100 mm (7.3 ×1.7″ × 3.9″)”
ModelDS-K4H258-LZ
Suitable DoorWooden, metal
Shell performanceHard anodizing electroplated
Weight0.77 kg (1.7 lb)

Exit Button/General
ModelDS-K7P03
Power supply12 VDC, 40 mA (standby)/70 mA (working)
Current rating1 A@30 VDC
Working temperature-20 °C to 50 °C (-4 °F to 122 °F)
Working humidity0 to 95% (relative humidity)
Dimensions86 mm × 86 mm × 25.7 mm (3.39″ × 3.39″ × 1.01″)
Weight0.2 kg (0.44 lb)
MaterialStainless steel
Output contactNO/NC/COM contact
Aging testAlready passed 1 million times aging test
Suitable doorAll kinds of narrow doorframes

Card/General
ModelFM11RF08-M1
RAM1 K byte
Card reading frequency13.56 MHz
Card propertyThin card
FunctionRead/write
Card reading distance≤10 cm
Working temperature-20 °C to 75 °C (-4 °F to 167 °F)
Dimensions85.5 mm × 54 mm × 0.8 mm (3.37″× 2.13″ × 0.03″)
Weight＜ 5.6 g (0.2 oz)
MaterialPVC
ColorWhite
