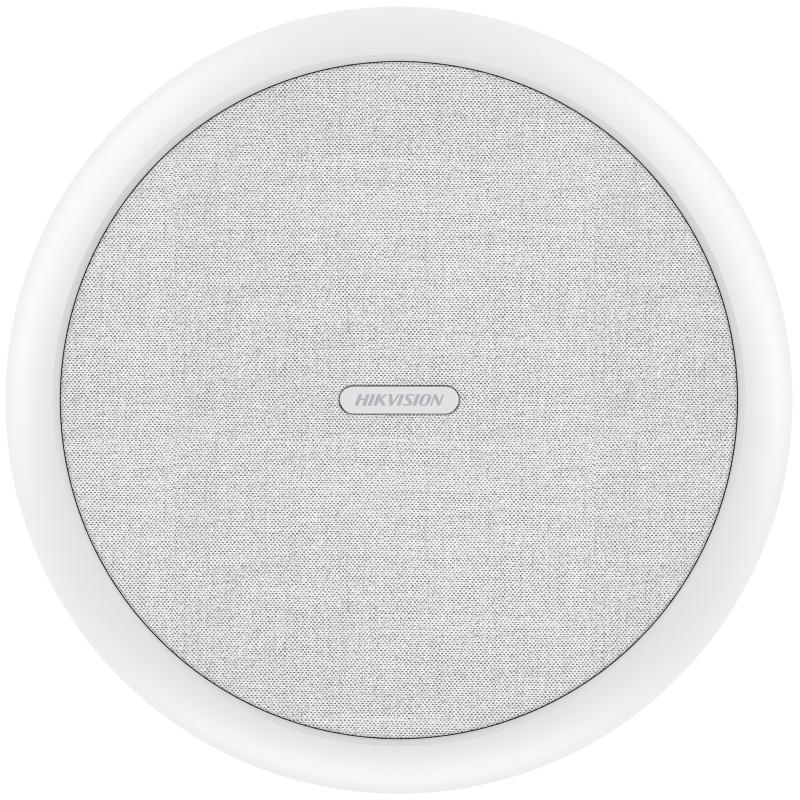

DS-UAC-M1P

32 mic array microphone

Adopts multi-mic array, picking up sounds in the radius up to 10 meters

The built-in digital circuit is embedded with DSP processing unit and AGC technology to realize clear sound with high fidelity

With multi-mic array design and self-adaptive beamforming technology, the microphone reduces reverberation effectively

Supports accessing echo reference signal via line in interface, and with AEC algorithm, the microphone suppresses echo and squeal effectively

Supports smart noise reduction, avoiding environmental noise

The indicator is convenient for troubleshooting

Supports network settings and transmitting the audio stream to network camera and DVR/NVR

Supports 32 kHz audio sampling rate for HD sound

Power over ethernet, convenient for installation

specification

Microphone
Amount32
DirectionOmnidirectional
Pickup DistanceIn the radius up to 10 m
Sensitivity-36 dB±1 dBFS
SNR90 dB
Frequency Response20 Hz~16 kHz
Dynamic Range105 dB
Max. Sound Pressure Level120 dBSPL
Output Amplitude2.5 Vpp MAX
Audio Transmission Distance≥3000 m
Output Impedance600 Ω, balanced output
Distortion Degree≤3%

Functions
Echo SuppressionYes
Noise Reduction Adjustmentdigital noise reduction
Volume Adjustment≥100 level volume adjustment
Device ManagementPower-off detection, program exception detection
Anti-reverberationYes

Audio
Audio Sampling Rate16 kHz, 32 kHz

Interface
Indicator
Solid white: normally working

Solid red: abnormal

No light: no power supply
Device InterfaceLine out, Line in, DC power input, RJ45 network cable

General
Power9 VDC~30 VDC, PoE, 2.4 W Max
MaterialPlastic
DimensionØ250 mm × 34.5 mm (Ø9.84″ × 1.36″)
WeightApprox. 740 g (1.63 lb.)
Operating Condition-10 ℃～50 ℃ (14°F~122°F, Indoor)

Accessory
Packing List
Microphone × 1

Extension Cable × 1

Quick Start Guide × 1

Installation Plate × 1

Approval
Protectionlightning protection, power polarity reversal protection, and electrostatic discharge protection
