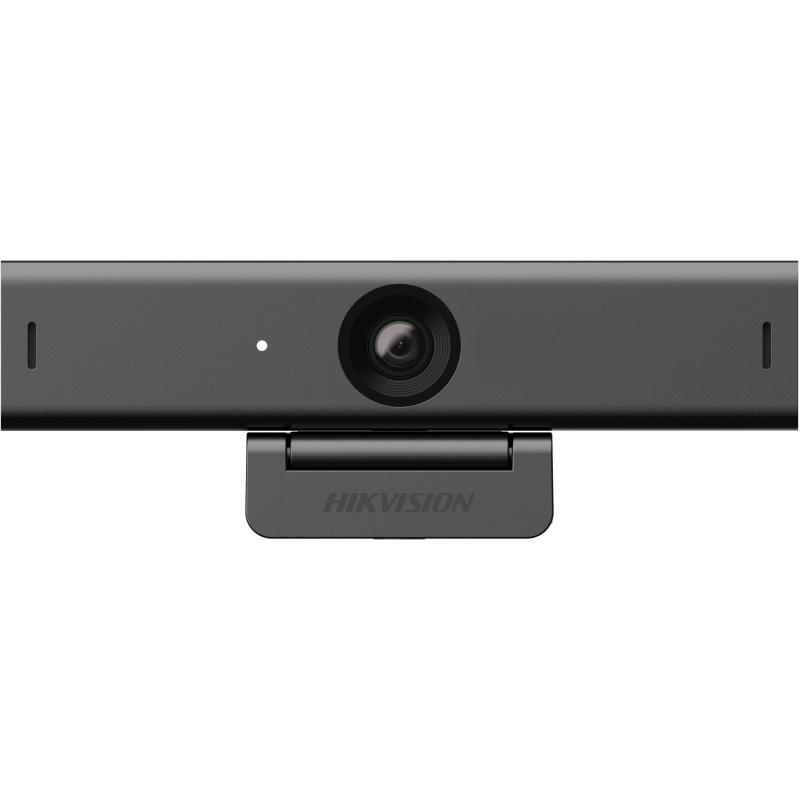

DS-UC2

2 MP Web Camera

High quality imaging with 1920 × 1080 resolution

Low distortion lens for reducing image distortion

Built-in dual-microphone with clear sound

USB Type-C interface, supporting USB 2.0 protocols

Plug-and-play, no need to install driver software

Support auto focus

specification

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Frame Rate
MJPG：

1920 × 1080 @ 30 fps/25 fps

1280 × 960 @ 30 fps/25 fps

1280 × 720 @ 30 fps/25 fps

640 × 480 @ 30 fps/25 fps

640 × 360 @ 30 fps/25 fps

YUV2：

1920 × 1080 @ 5 fps

1280 × 960 @ 5 fps

1280 × 720 @ 10 fps

640 × 480 @ 30 fps

640 × 360 @ 30 fps
Resolution1920 (H) × 1080 (V)
Min. Illumination0.1 Lux @ (F1.2, AGC ON)
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens3.6 mm fixed focal lens
Field of Viewhorizontal FOV: 87°, vertical FOV: 55°, diagonal FOV: 95°
Lens MountM8
Day & Night24/7 Color Imaging
Angle Adjustmentpan: 0° to 360°; tilt: 0° to 90°; rotation: 0°
Digital Zoom1.5 ×
Cable Length2 m

Lens
Depth of Field5 cm to ∞

Wide Dynamic Range (WDR)Digital WDR
White BalanceAuto

Audio
Audio Sampling Rate16 kHz

Interface
Video OutputUSB 2.0
Operating System
Recommended systems

Windows 7/8/10/11

Android 8.1 and above version

Linux 4.14 and above version

macOS 10.12 and above version

Chrome OS
Built-in Microphone2 built-in microphones, picking up sounds in the radius up to 3 meters
IndicatorWhite: Normally Working

General
Operating Conditions-10°C to 40°C (-40°F to 104°F), Humidity: 90% or less (non-condensing)
Power SupplyDC 5V ± 5% (USB)
Consumption2.5 W MAX
Dimension120 mm × 27.9 mm × 25.6 mm (4.72″ × 1.10″ × 1.01″)
WeightApprox. 147 g (0.32 lb.)

Accessory
Packing List
Camera × 1

USB Cable × 1

Quick Start Guide × 1
