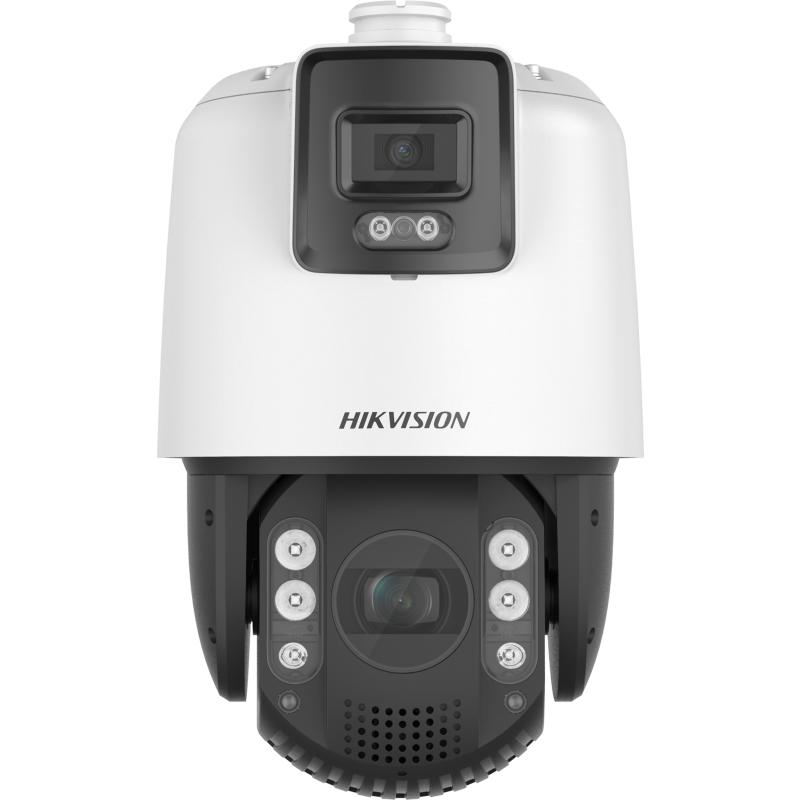

DS-2SE7C432MW-AEB(14F1)(P3)

TandemVu 7-inch 4 MP 32X Colorful & IR Network Speed Dome

Captures a large area and great details at the same time

High quality imaging with 4 MP resolution

Excellent low-light performance with powered-by-DarkFighter technology

Secures an expansive area with 32× optical zoom and 16× digital zoom

Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus

Expansive night view with up to 200 m IR distance

Supports 24 VAC & Hi-PoE

Active strobe light and audio alarm to warn intruders off

specification

Camera
Image Sensor[Bullet channel]: 1/1.8″ Progressive Scan CMOS; [PTZ channel]: 1/1.8″ progressive scan CMOS
Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Slow Shutteryes
Focussemi-auto;manual;auto
Day & NightICR
Zoom[PTZ channel] 32 × optical, 16 × digital
Day/Night Switchday, night, auto, scheduled-switch
BLCyes
WDR120 dB WDR
HLCyes
3D DNRyes
Defogyes
EISyes
Regional Exposureyes
Regional Focusyes
Image Settingssaturation;brightness;contrast;sharpness
White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
SNR＞52dB
General Functionmirror, password protection, watermark, IP address filter
Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lens
Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
Zoom Speed[PTZ channel]: approx. 5.6 s
FOV
[Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°;

[PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)
Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.5

Illuminator
Supplement Light Type[Bullet channel] white light, [PTZ channel] IR
Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot

Video
Stream Typemain stream;sub-stream;third stream
Main Stream
[Bullet channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

[PTZ channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
[Bullet channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
[Bullet channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROImain stream, sub-stream and third stream respectively support eight fixed areas

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
Audio Bit Rate32 to 192 Kbps (MP2L2)
Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filteringyes

Smart Features
Smart RecordANR;Dual-VCA
Warning and Alertwhite light and audible warning

Network
Network StorageNAS (NFS，SMB/ CIFS), ANR
ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
Simultaneous Live View20
User/Host32
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200;Hik-Connect
Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Image Parameters SwitchYes
Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Interface
Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Alarm Input2 alarm inputs
Alarm Output1 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω

Event
Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Alarm Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking[PTZ channel] yes
Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn

Deep Learning Function
Face Capture[Bullet channel] no,[PTZ channel] yes

General
Power24 VAC, Hi-PoE
Power Consumption and CurrentMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
Resetyes
DemistDemist by heating the glass
MaterialADC12
DimensionsØ 220 mm × 382.1 mm (Ø 8.66″ × 15.04″)
WeightApprox. 6 kg (13.23 lb.)

Approval
Protection IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
