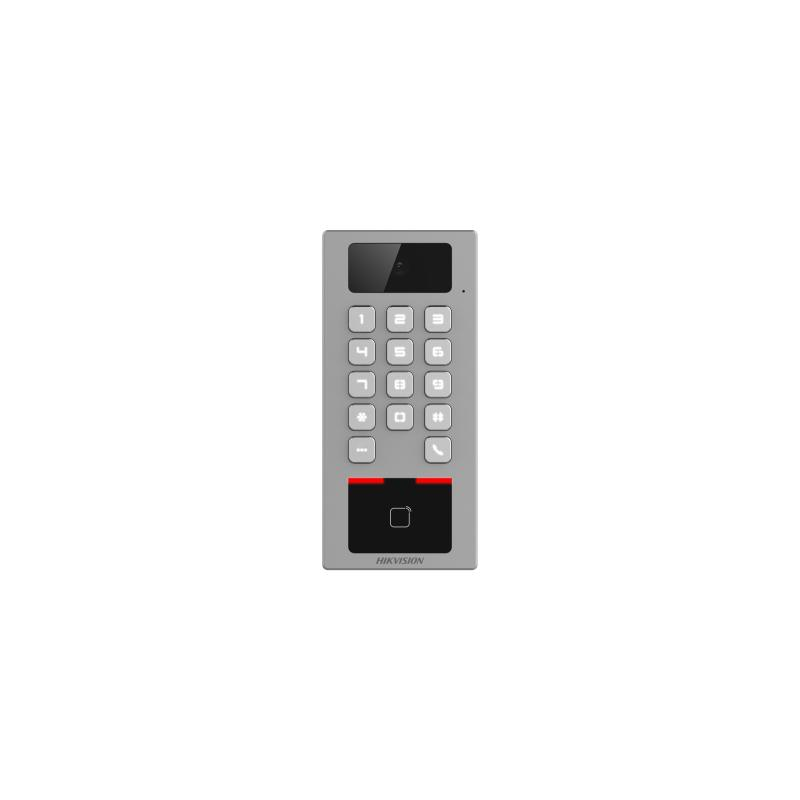

DS-K1T502DBWX-C

Access Control Terminal

Manage access control and intercom functions in one device

IP65 & IK09 protections, as well as increased stability with zinc alloy materials

Supports multiple authentication methods

Remote control via the Hik-Connect mobile app

Connects to external access controller via Wiegand protocol

Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware

RS-485 communication for connecting external card reader and calling elevator

Supports AP mode

Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App

Supports up to 256 GB SD card memory

PIN settings via mobile App is available after password mode selection

Setting the priority of wired network and wireless network is available

specification

System
Operating systemLinux

Video
Lens1
Video compression standardH.264 and H.265
Resolution2 MP
FOVHFOV = 110°; VFOV = 81°; DFOV = 122°
Video standardPAL (Default) and NTSC

Network
Wired network10 M/100 M self-adaptive
Wi-FiSupport

Interface
Network interface1
Lock control1
Exit button1
Door contact input1
Alarm input1
Alarm output1
TAMPER1
RS-4851
Wiegand1 (Input and output)
SD Card Slot1

Capacity
Card capacity100,000
Event capacity300,000

Authentication
Card typeM1 card;DESfire card
Card reading distance0 ~ 3 cm

Function
Two-way audioSupport
Video intercomSupport
Hik-ConnectSupport

General
Power supply1 A (12 VDC to 24 VDC)
Power consumption≤12 W
Working temperature -40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
Protective levelIK09, IP65
LanguageArabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
