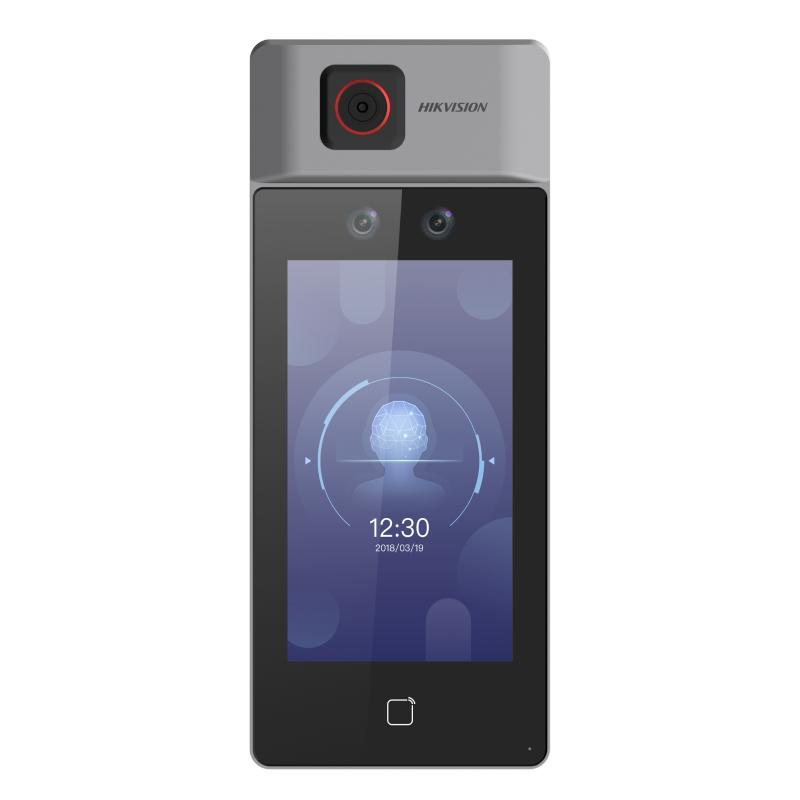

DS-K1T671TM-3XF

Ultra Face Recognition Terminals

Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C

Recognition distance: 0.3 to 2 m

Face mask detection

Displays temperature measurement results on the authentication page

7-inch LCD touch screen,2 Mega pixel wide-angle lens

Built-in Mifare card reading module

Face recognition duration ＜ 0.2 s/User

face recognition accuracy rate ≥ 99%

50,000 face capacity, 50,000 card capacity, and 100,000 event capacity

specification

System
Operating systemLinux

Temperature measurement
Temperature range30 °C to 45 °C (86 °F to 113 °F)
SensorVanadium Oxide uncooled sensor
Resolution120 × 160
Frame rate25 fps
Measurement accuracy0.1 °C
Measurement deviation± 0.5 °C, without black body calibration
Measuring distance0.3 to 2 m

Display
Screen size7-inch
Operation methodTouch screen

Video
LensDual-lens
Resolution2 MP
FOV HFOV= 46°；VFOV=87°

Network
Wired networkSupport, 10/100/1000 Mbps self-adaptive

Interface
Network interface1
Lock control1
Exit button1
Door contact input1
Alarm input2
Alarm output1
TAMPER1
RS-4851
Wiegand1
USB2

Capacity
Face capacity50000
Card capacity50000
Event capacity100000

Function
Face anti-spoofingSupport

General
Power supply12 VDC/2 A
Working temperature
0 °C to 50 °C (32 °F to 122 °F)

For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)
Working humidity10 to 90% (No condensing)
Application environmentIndoor and windless environment use only
