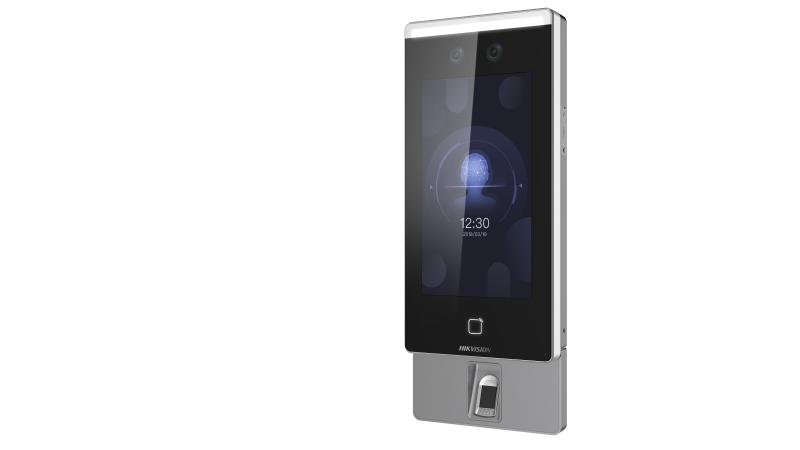

DS-K1T671TMFW

Ultra Face Recognition Terminals

Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed

7-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module

Face recognition distance (without face mask): 0.3 m to 3 m, Duration ＜ 0.2 s/User, Accuracy rate ≥ 99%

Max. 50,000 faces capacity, Max. 5000 fingerprints capacity, and Max. 50,000 cards

Two-way audio with client software,indoor station, and main station

Supports TCP/IP,Wi-Fi

Configuration via the web client

Supports ISAPI and ISUP5.0 protocol

IP65

specification

System
Operation systemLinux

general
FOVHFOV= 46°；VFOV=87°

Display
Dimensions7-inch
TypeLCD
Operation methodCapacitive touch screen

Video
Pixel2 MP
Lens2

Audio
Tone qualityNoise suppression and echo cancellation

Network
Wired network10 M/100 M/1000 M self-adaptive
Wi-FiSupport

Interface
Network interface1
RS-4851
Wiegand1
Lock output1
Exit button1
Door contact input1
IO input2
IO output1
Power interface2-pin
TAMPER1
USB2

Capacity
Card capacity50,000
Face capacity50,000
Fingerprint capacity5000
Event capacity100,000

Authentication
Card typeM1 card
Card reading frequency13.56 MHz
Card reading distance0 to 5 cm
Face recognition duration＜ 0.2 s per person
Face recognition accuracy rate≥ 99%
Face recognition distance0.3 to 3 m (Without face mask)

Function
Face anti-spoofingSupport
AdvertisementSupport
Audio promptSupport
Time synchronizationSupport

General
Power supply method2 pin connecter
Power supply12 VDC/ 2 A
Working temperature-30 ℃ to 60 ℃ (-22 °F to 140 °F)
Working humidity10 to 90％ (No condensing)
Dimensions290 mm × 116.5 mm × 33 mm (11.4″ × 4.6″ × 1.3″)
Protective levelIP65
InstallationWall mounting
LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
PlatformHik-ProConnect and HikCentral Professional
