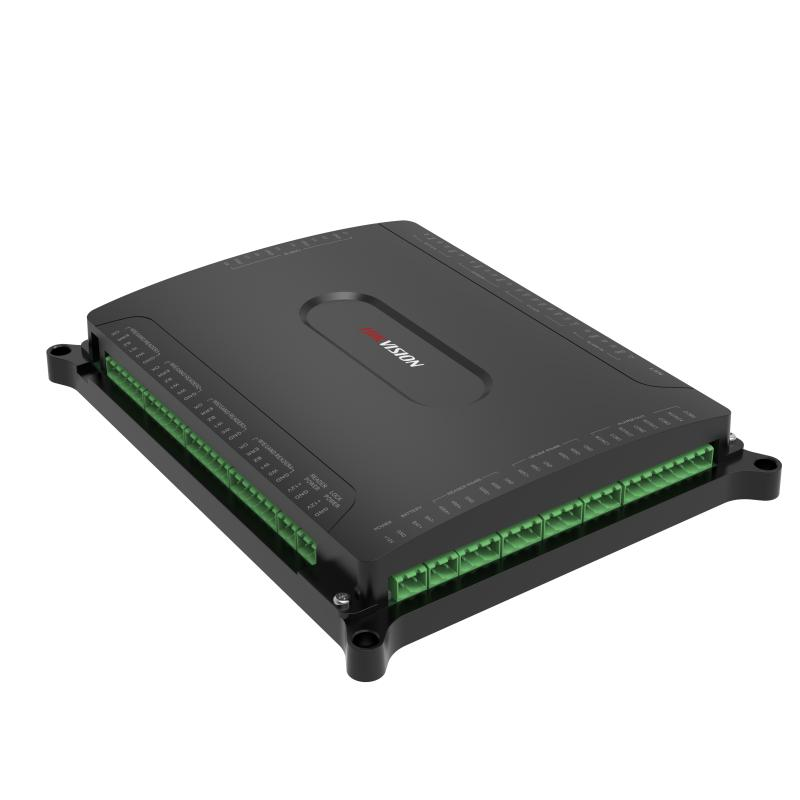

DS-K2604T (main board)

Access Controller

Supports multi-door interlocking function, anti-passback function, multi-card function, first person function, super card and super password function

Online upgrade function and online remote control of the doors

Supports alarm event upload

Supports RS-485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface

Supports time synchronization via NTP, manual or automatic method

Data can be permanently saved when the access controller is powered off

specification

Interface
Network interfaceTCP/IP
Lock control4
Exit button4
Door contact input4
Alarm input4
Alarm output4
RS-4858
Wiegand4

Capacity
Card capacity100,000
Event capacity300,000

General
Power supply12 VDC
Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
Power consumption
With load: ≤ 100 w

Without load: ≤ 4 w
Working humidity10% to 90% (no condensing)
Dimensions236 mm × 185 mm × 37 mm (9.3″ × 7.3″ × 1.5″)
